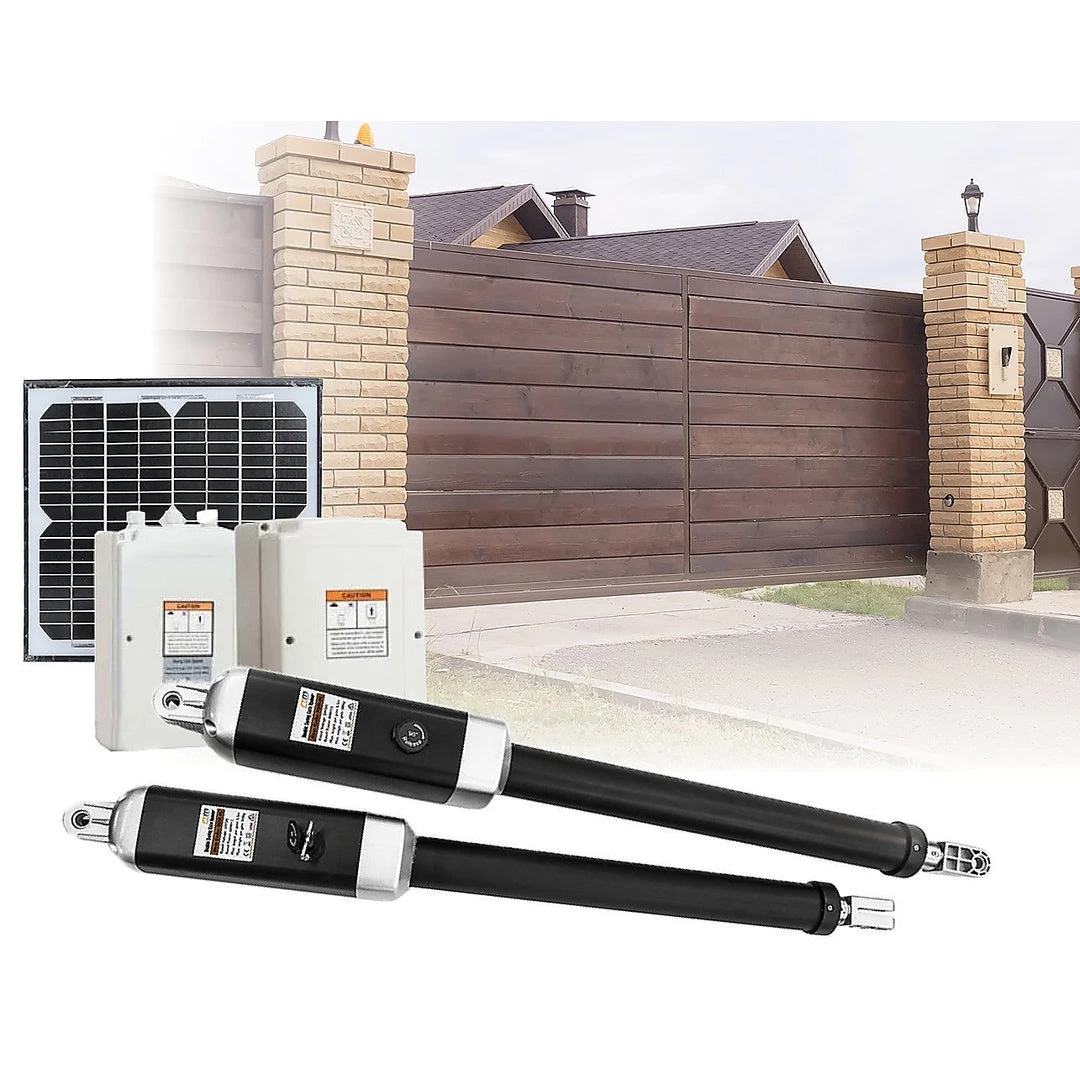

Randy & Travis Machinery DIY & Renovation 1000KG 10W Solar Double Swing Auto Motor Remote Gate Opener

When it comes to securing your home in a stylish, durable, and safe way, you shouldn’t settle for anything less than this 1000KG Auto Double Swing Gate Opener.

Features:

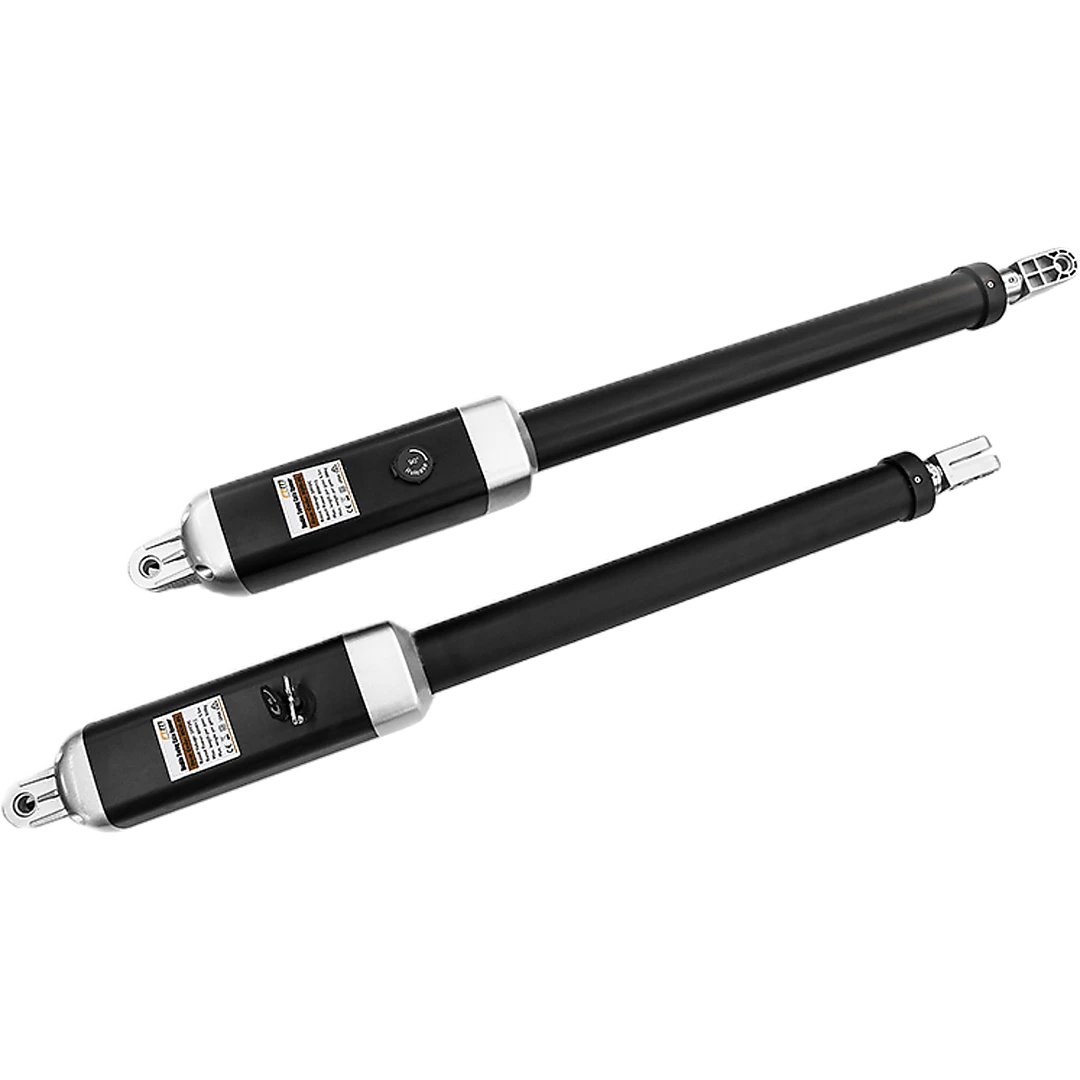

• Aluminium alloy actuator with a powerful motor inside
• Soft, smooth and silent openings and closings
• Stop and reverse mode in case of obstruction (customisable sensitivity)
• Can operate in dual gate or single gate modes
• Customisable interval between opening of master gate and slave gate
• Auto-close is fully adjustable between 0 and 99 seconds
• Over-current protection
• Manual operation in case of power failure
• 3 x Remote Controls (Battery:  A27 12V) with 30m operation range.
• 4-button operation: close, open, stop and pedestrian open
• Easy-to-use digital control board with status and menu settings
• Waterproof and dust-proof control box

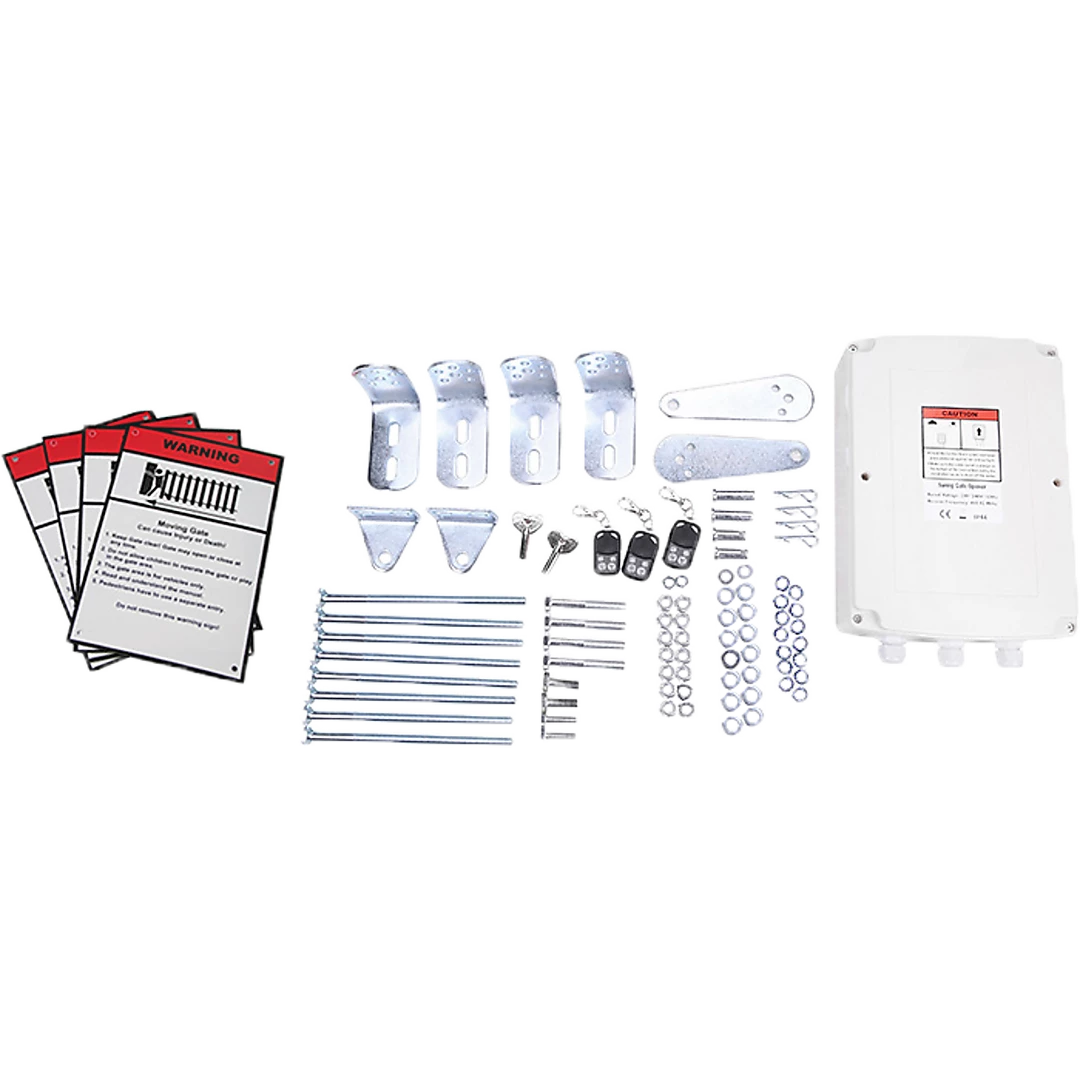

• Full user manual and all installation hardware included
• Gates are NOT included

Specifications:

• Voltage: 24V DC
• Gate limit type: Electromagnetism Limit
• Speed of actuator: 16mm/s
• Max piston travel: 385mm

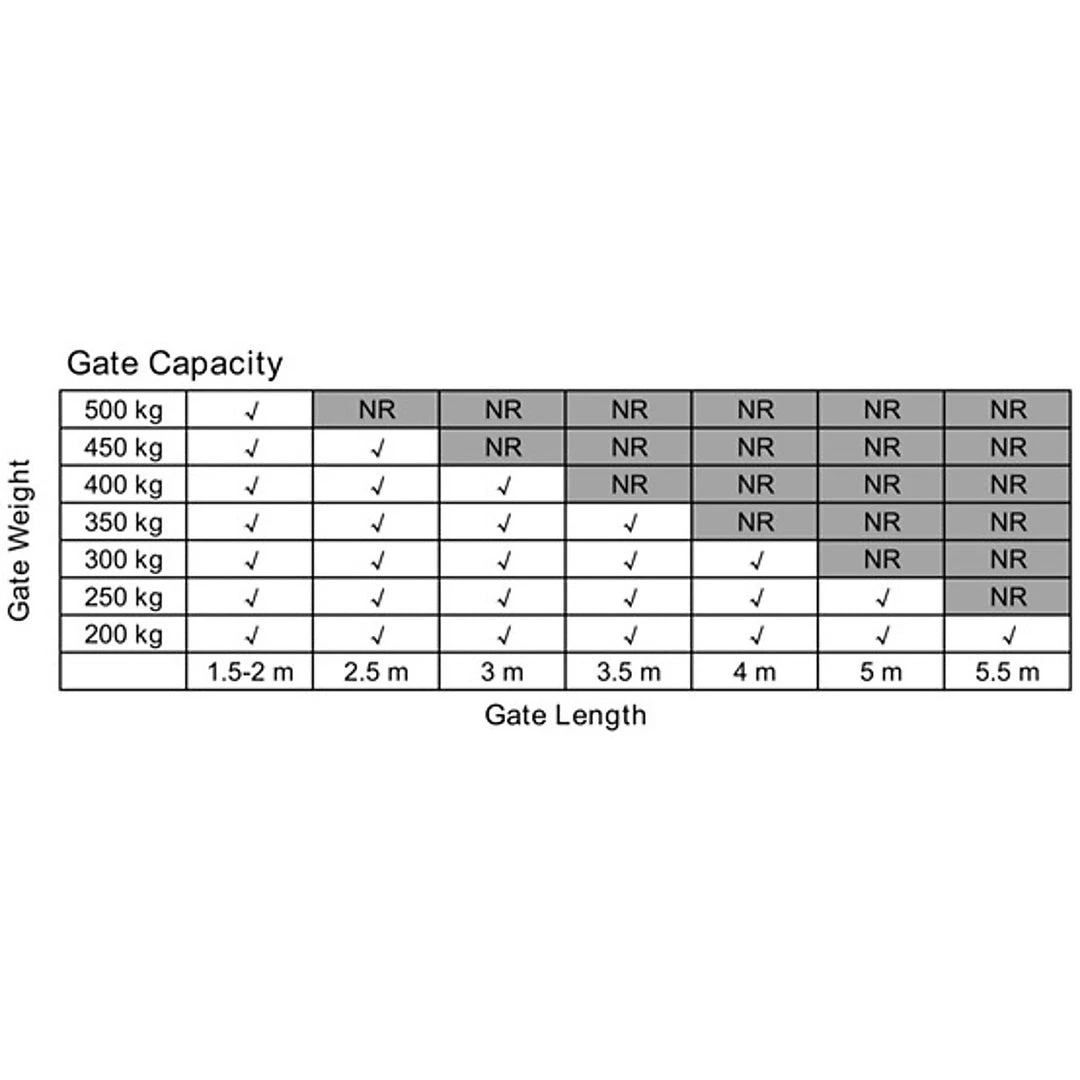

• Maximum weight capacity of each gate: 500kg
• Maximum width of each gate: 5.5m (supporting a 200kg gate)
• 90 degree time of rotation: 8 -15 seconds
• Maximum opening angle: 0 to 110 degrees
• Operating temperature: -25°C to +55°C
• Protection class: IP44
• CE/EMC approval model

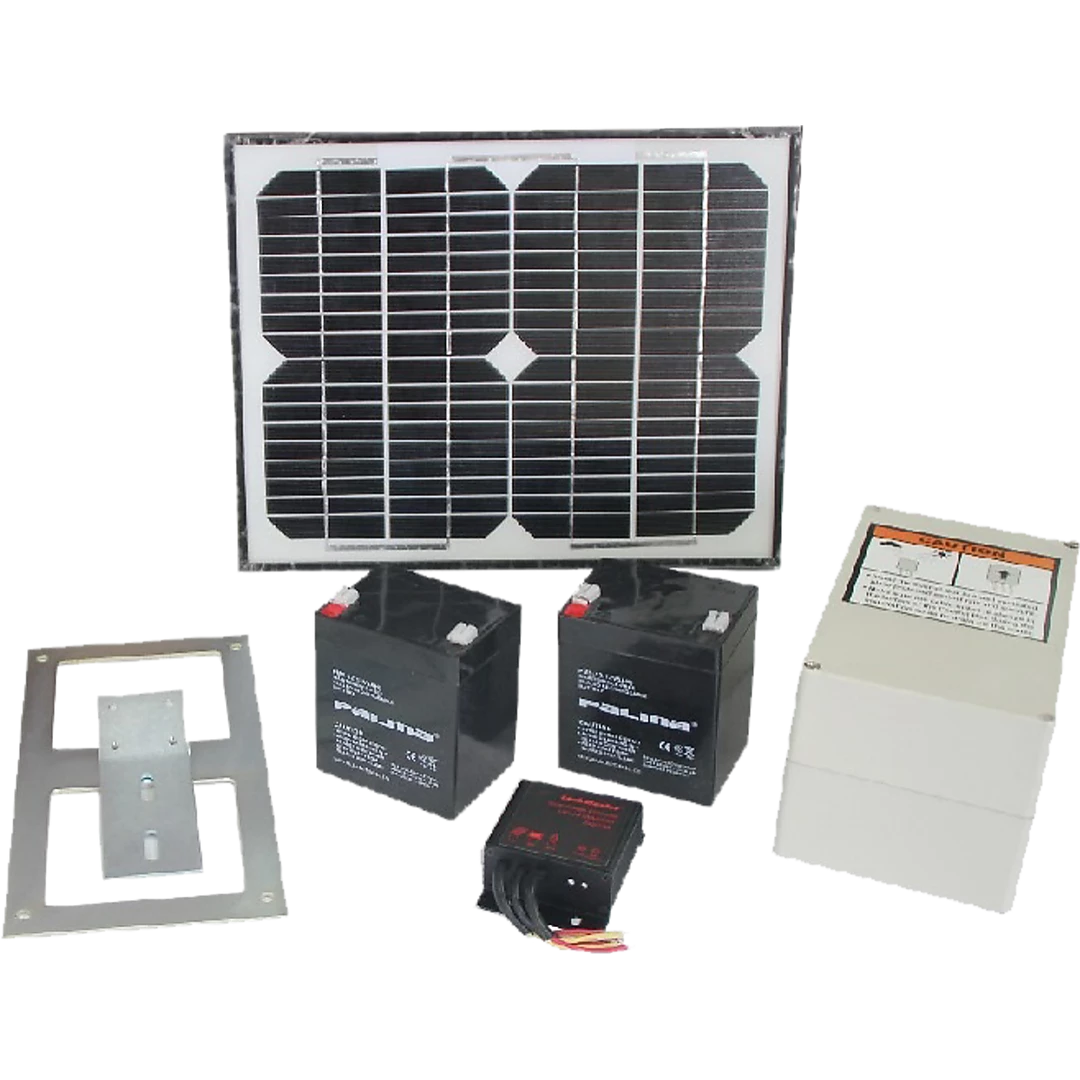

• 2 x 12V 5AH backup batteries for solar kit
• 10W MONO solar panel for solar kit

10W 2 x 12V solar panel kit as back up battery only

Item Code: HUH-9L + HUH-SW-10-SOLAR

Note: Assembly must be done by a licensed Electrician
