Randy & Travis Machinery 500N Max Automatic Garage Roller Door Opener Motor With Auto Reverse DIY & Renovation

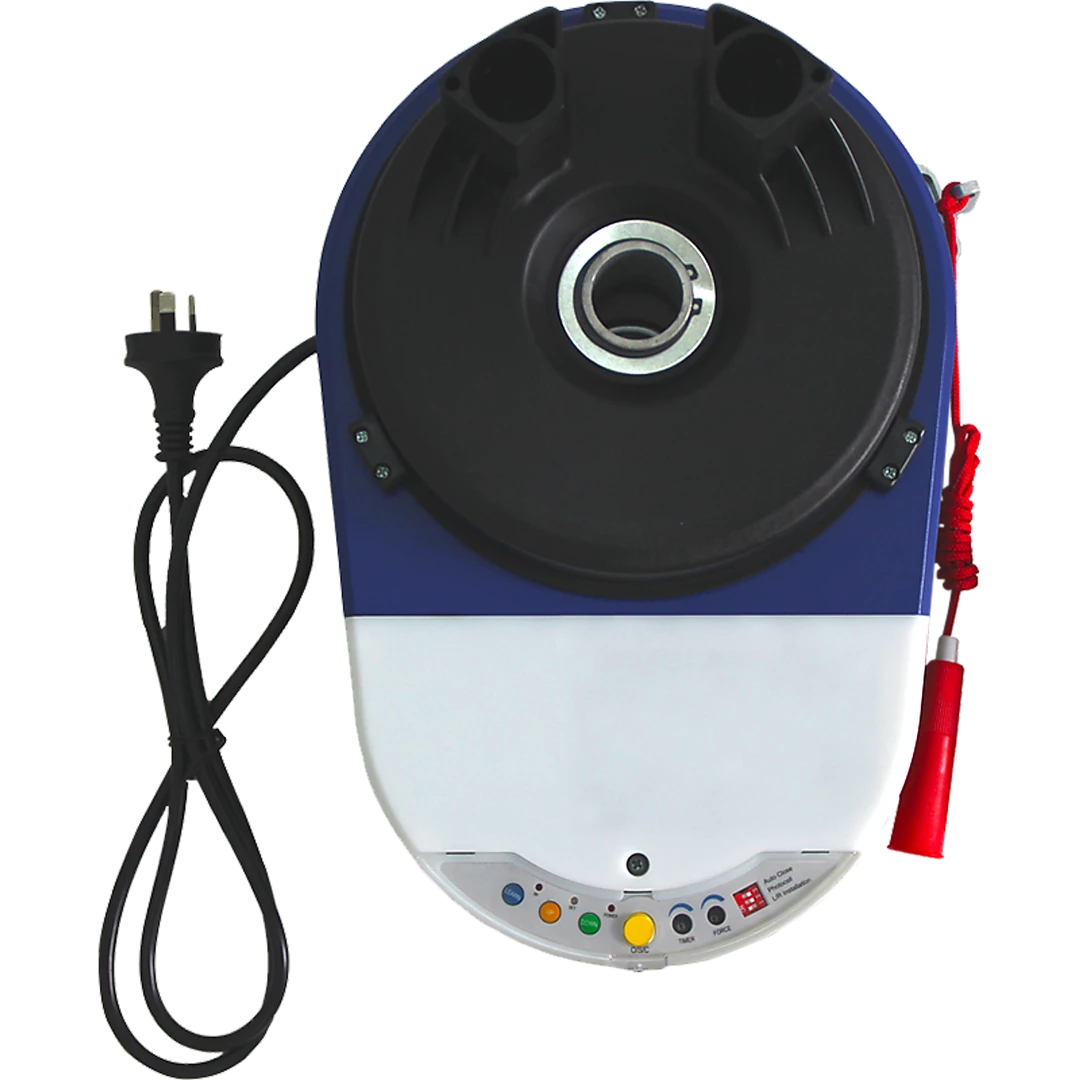

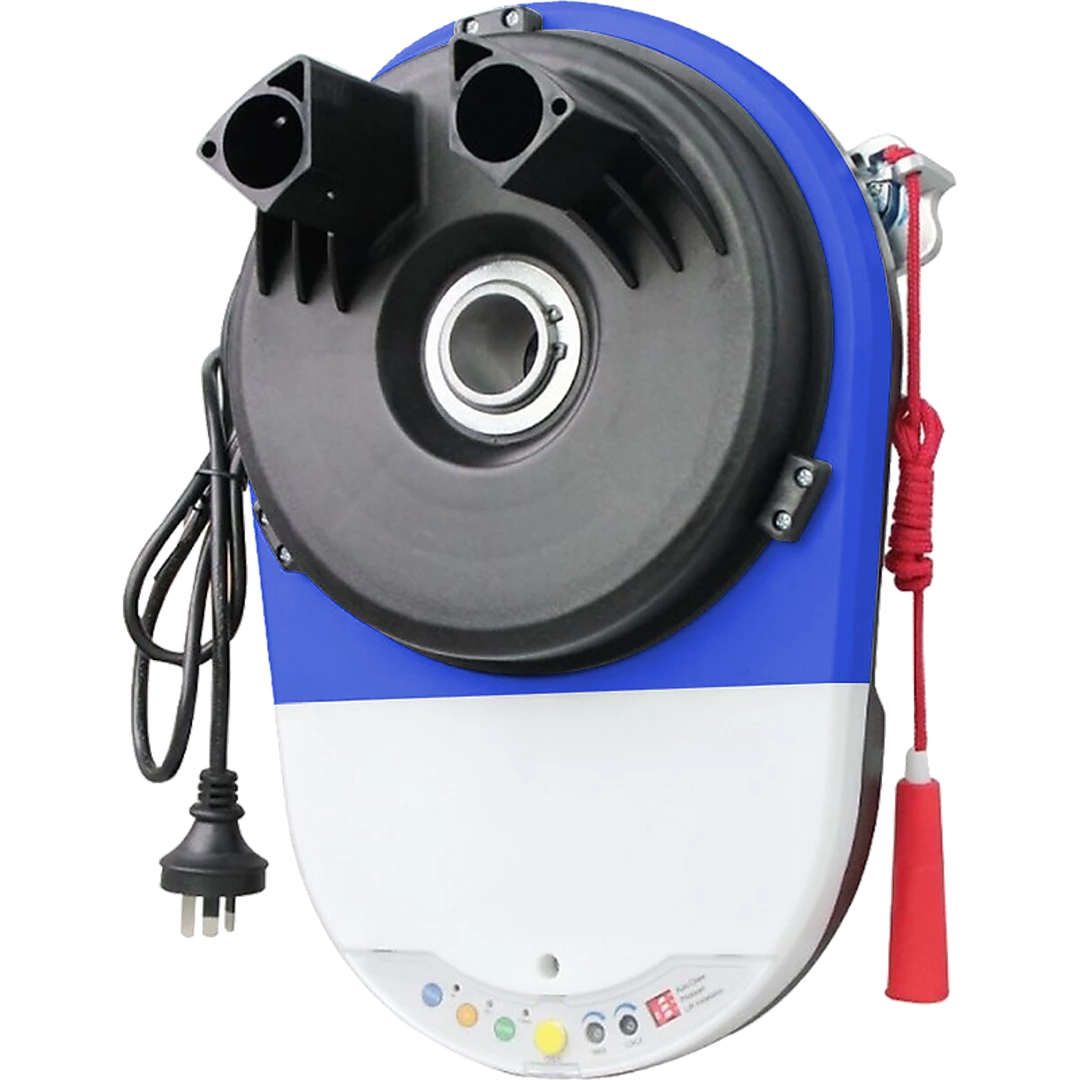

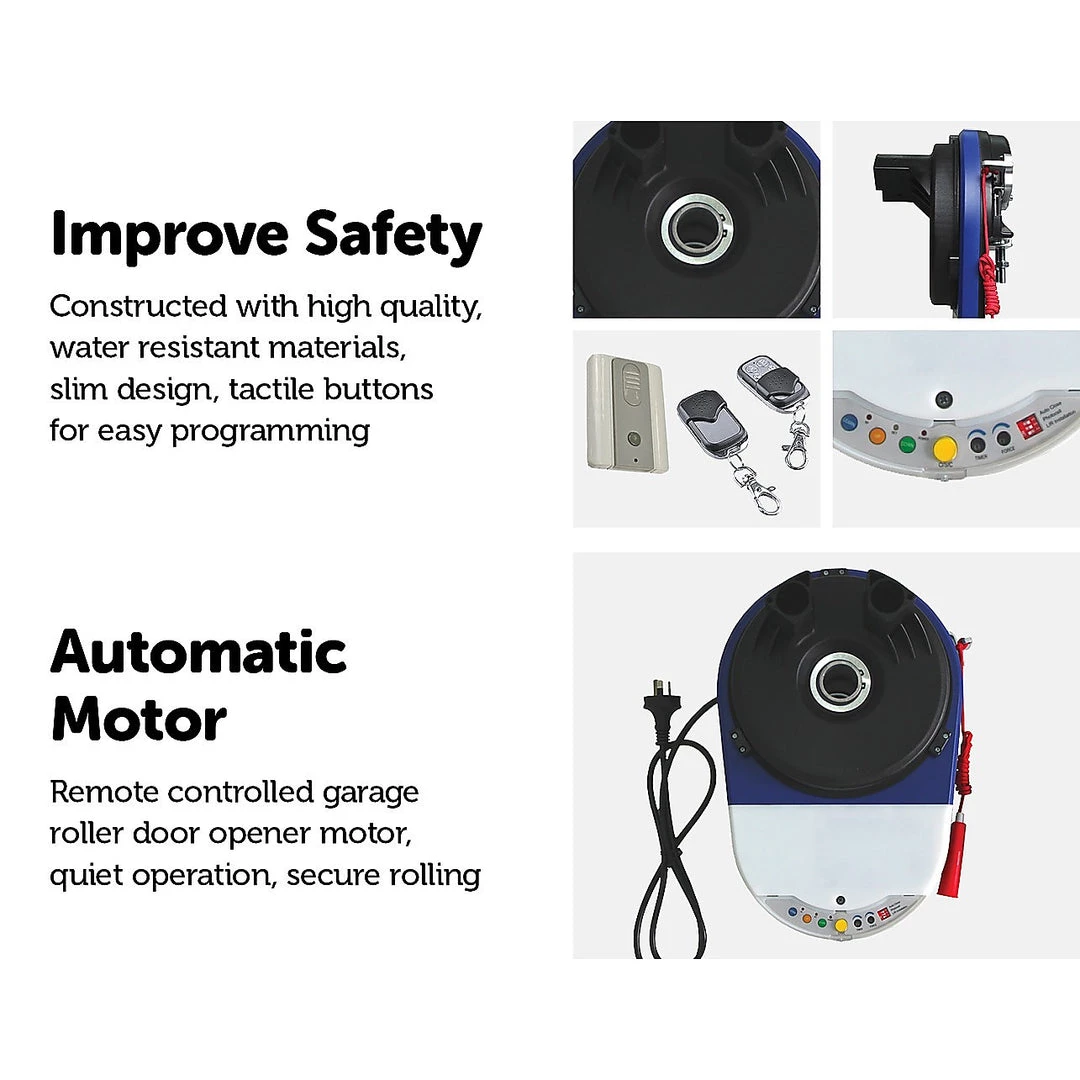

This 500N Max Automatic Garage Roller Door Opener Motor (with Auto Reverse / Stop) will easily convert your existing garage door to an automatic one.

This product is water resistant and especially designed for Australian style garage rolling doors.

Features:

• Quiet in operation,secure with rolling

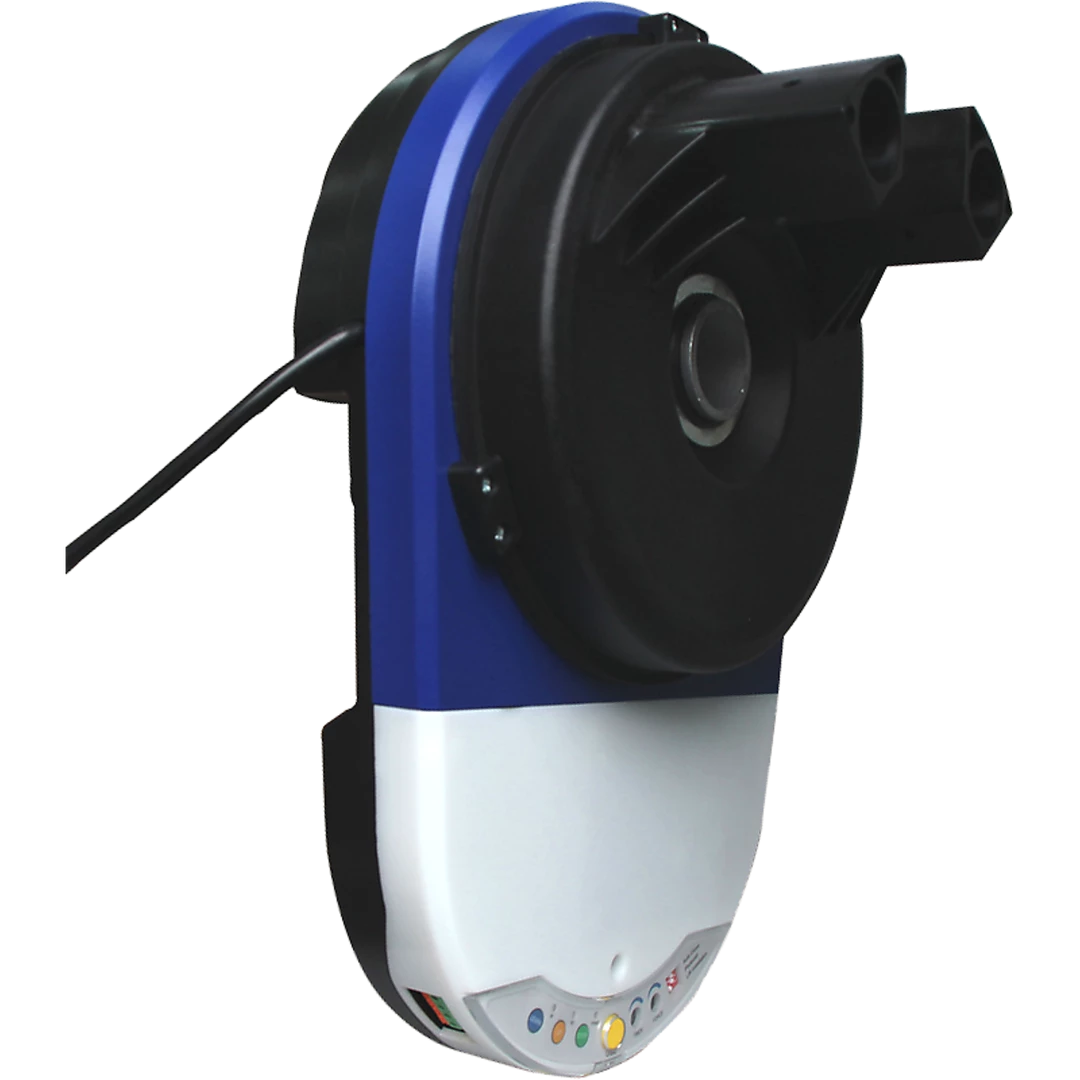

• Slim design requires a minimum side space of 40mm
• Supports door sizes up to 4.5m high with a max door area of 16m²  – (up to 80kg Spring Balanced)

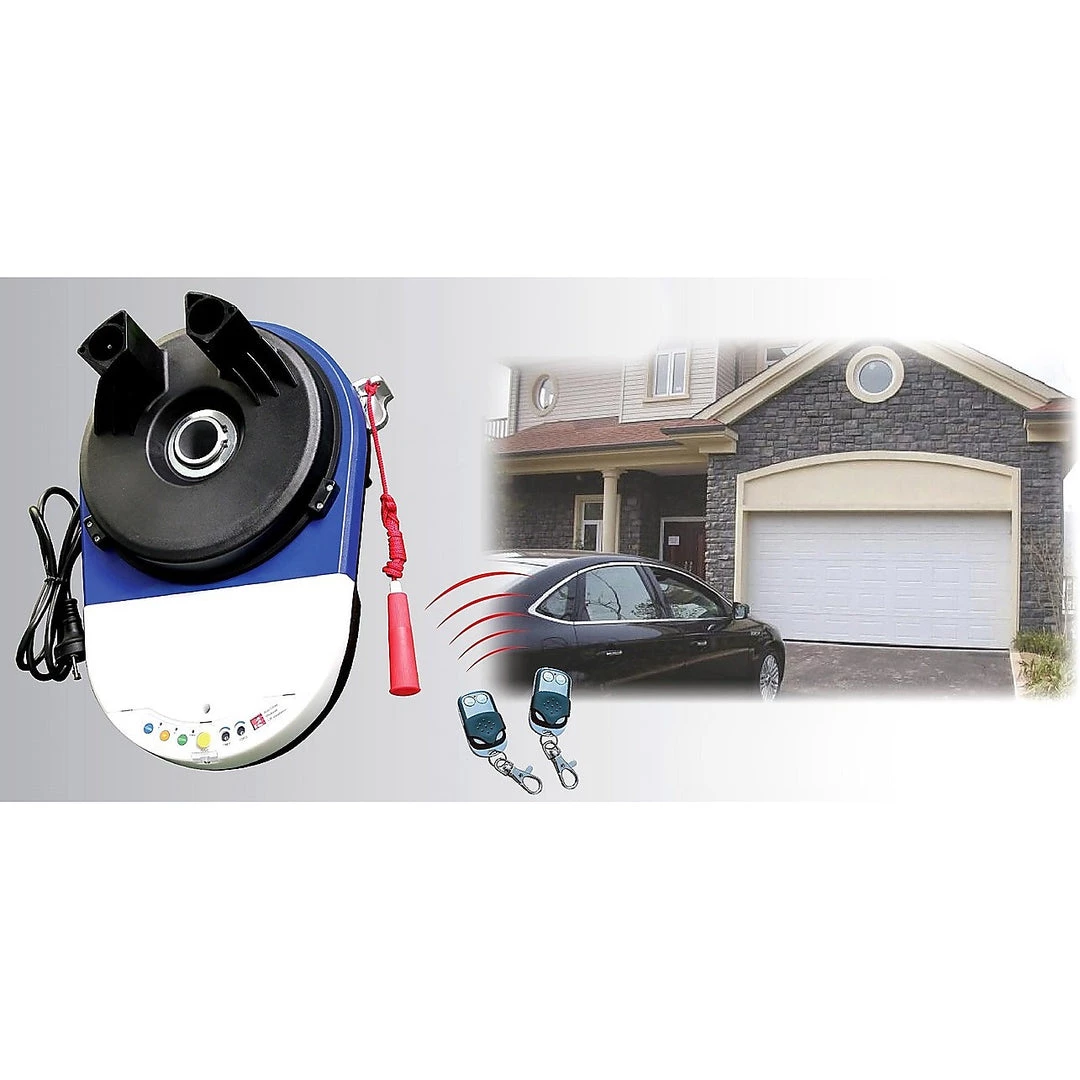

• Includes wireless door button + 2 x remote controls (as seen in the pictures)
• Soft Start and Soft Stop
• SMT PCB control system
• Over current protection
• Auto-Reverse / Stop Safety function in case of obstruction
• Built in adjustable auto-close (1-99 seconds)
• Built in Max. Motor running time for multiple safety protection (45 seconds)

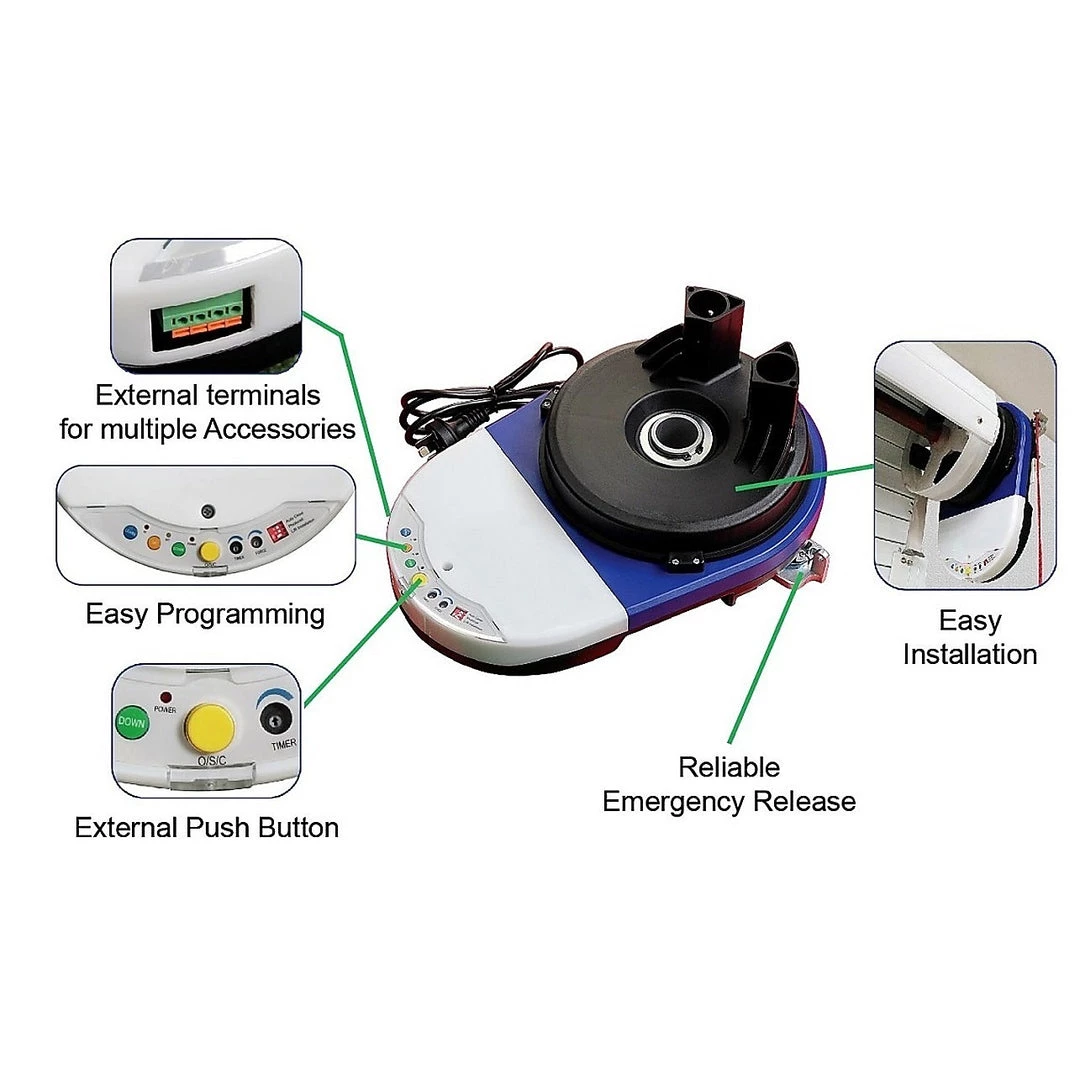

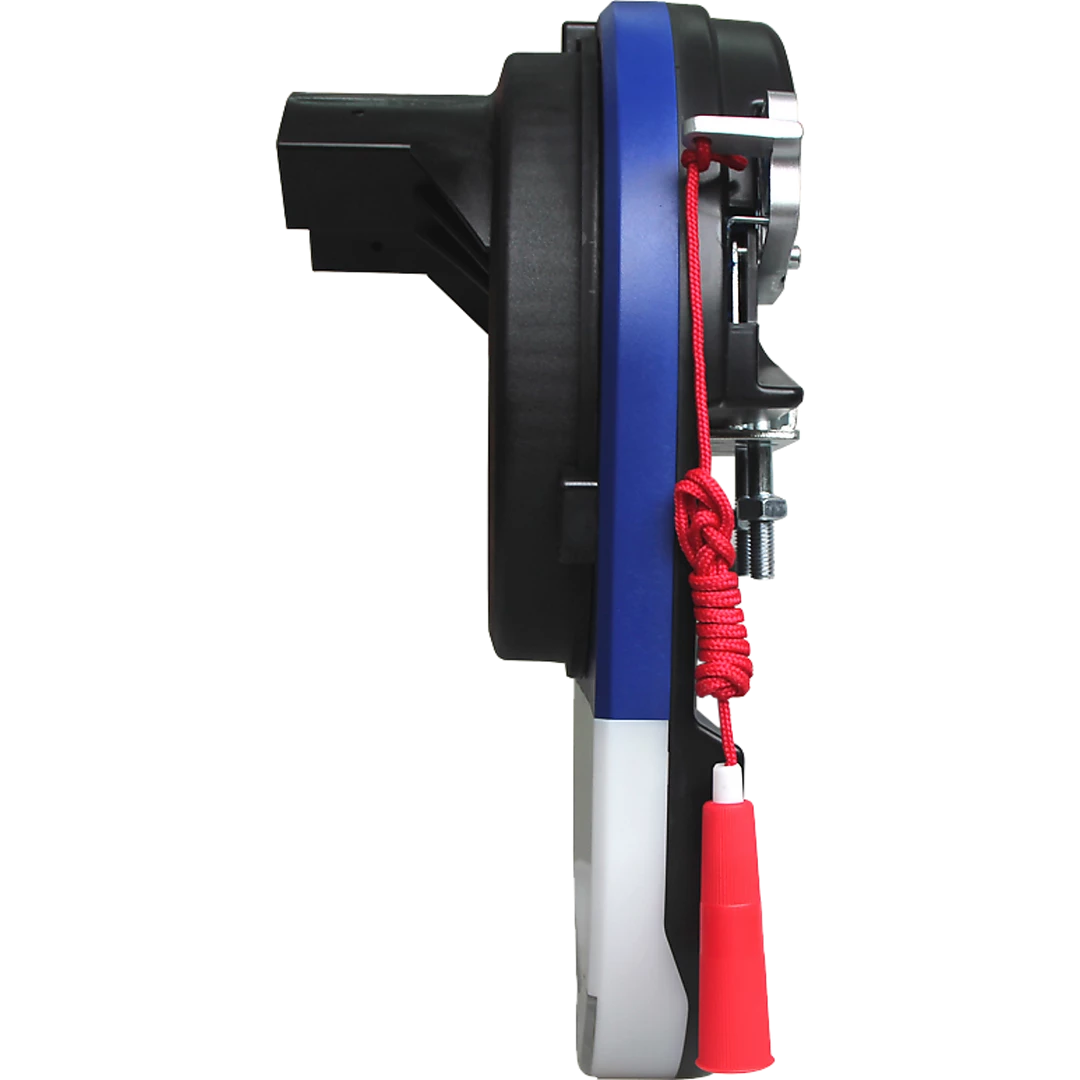

• Double disengage device for easy manual and auto operation
• Removable drum fork
• Rolling code remote control

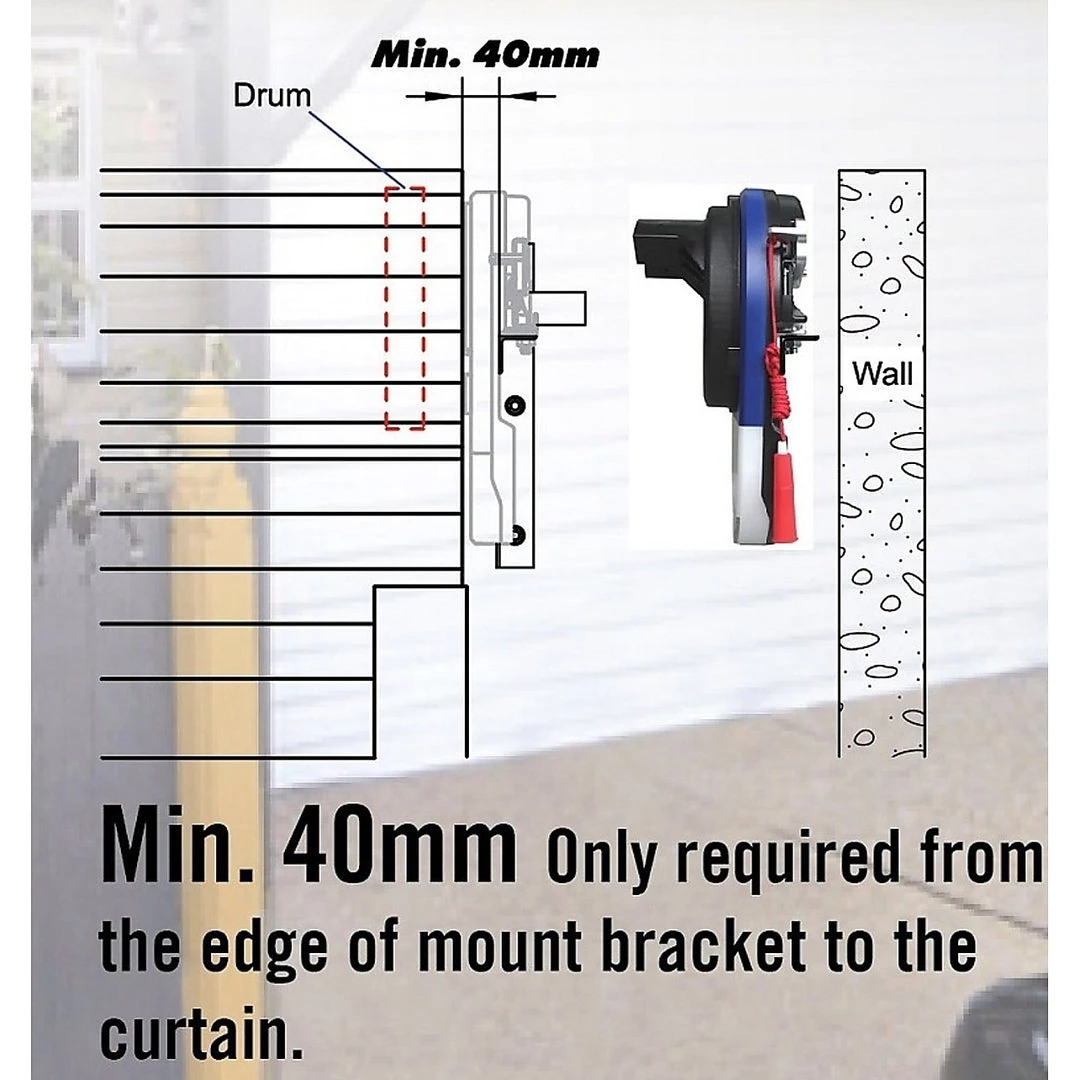

• Distance between curtain and bracket: Min 40mm

Specifications:

• 230V, 50Hz
• Power: 120V A
• Lift Force Max: 500N
• Protection Grade: IP53
• Max Door Height: 4.5m
• Max Door Area: 16m
• Built-in Max Running Time: 45 seconds
• Max Travel: 5 turns of drum
• Auto close time: adjustable from 1-99 seconds
• Weight: 5kg

Model Code: HUH-AP



PLEASE NOTE:

1.  Only the roller door mechanism and associated remotes & wireless door button included. Actual garage door is NOT included.
2.  Assembly must be done by a licensed Electrician.
